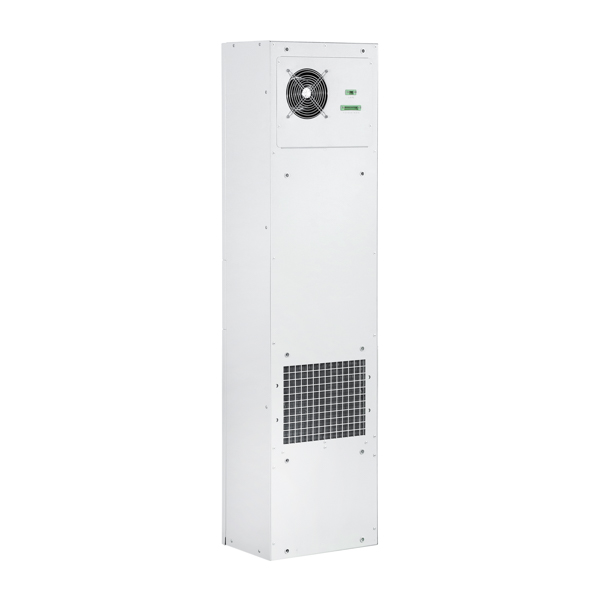

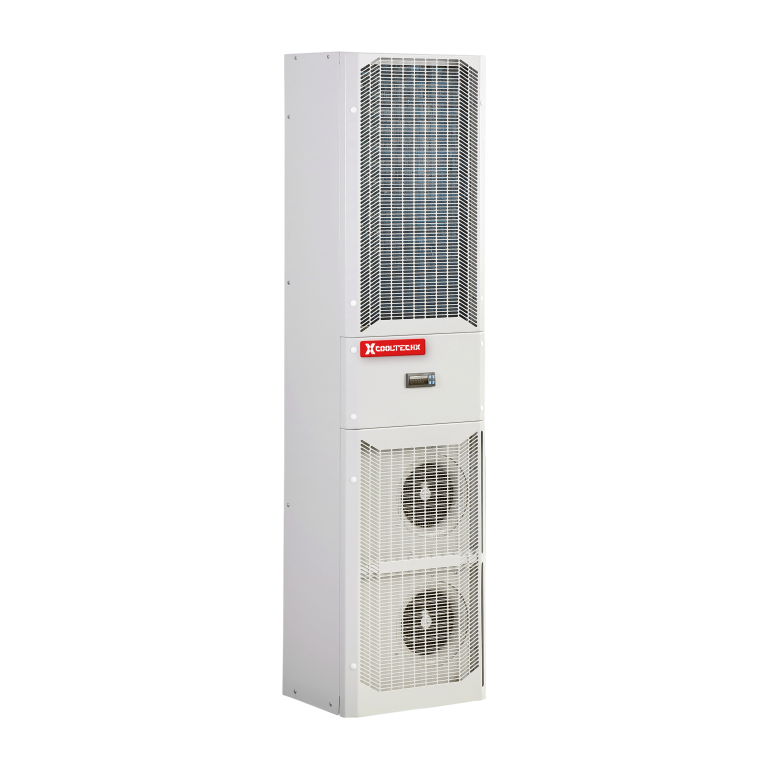

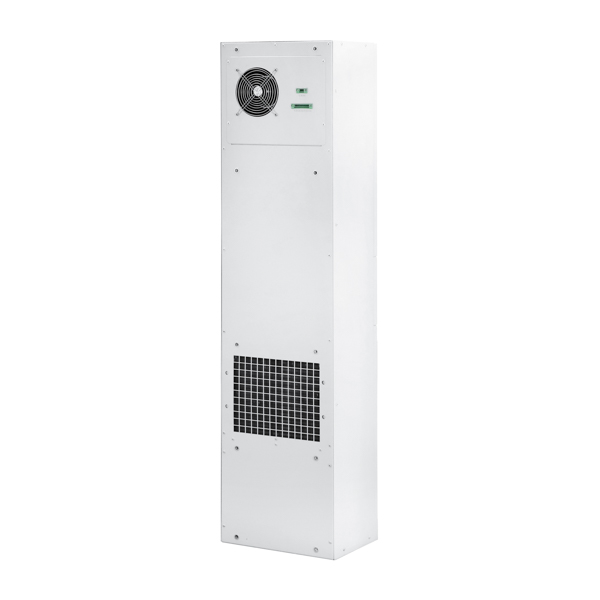

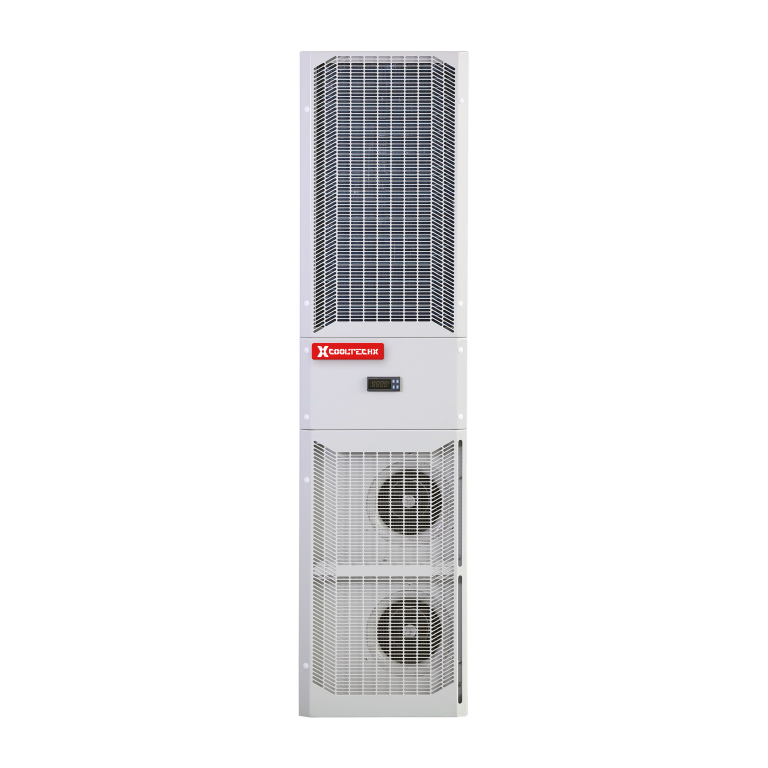

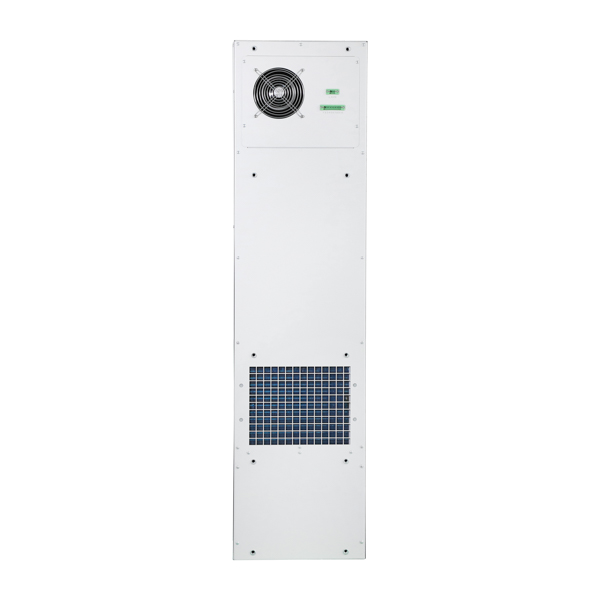

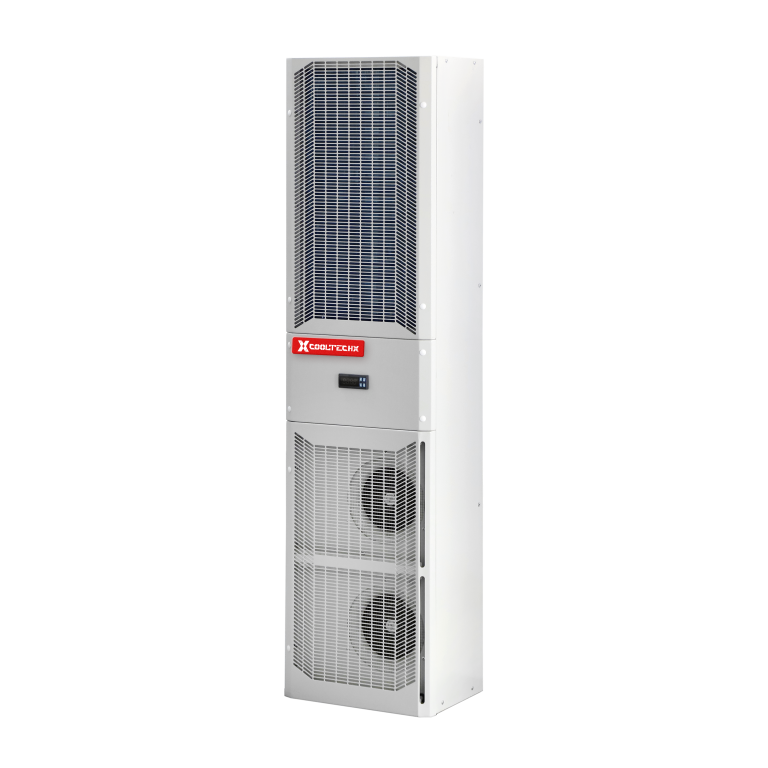

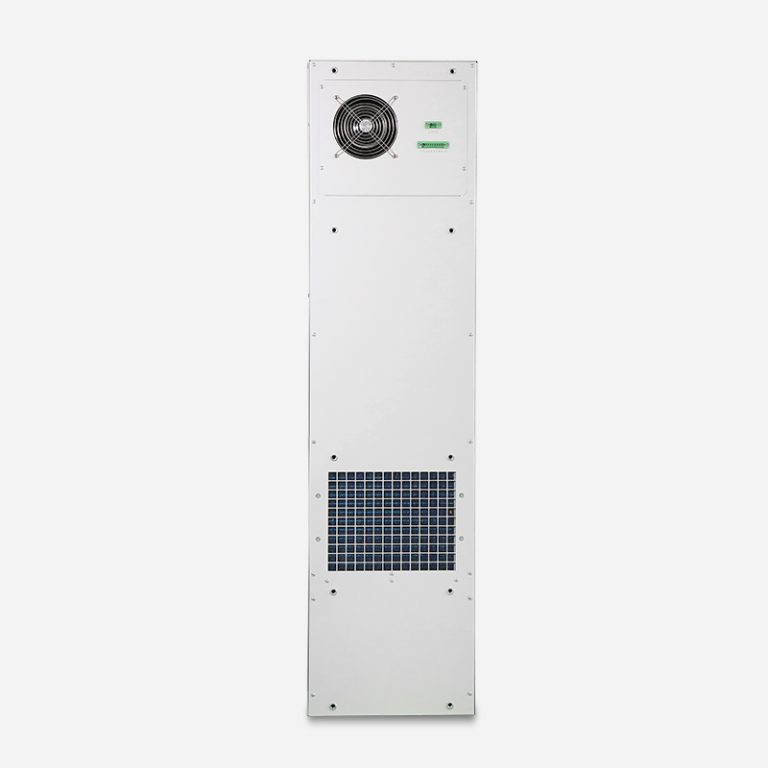

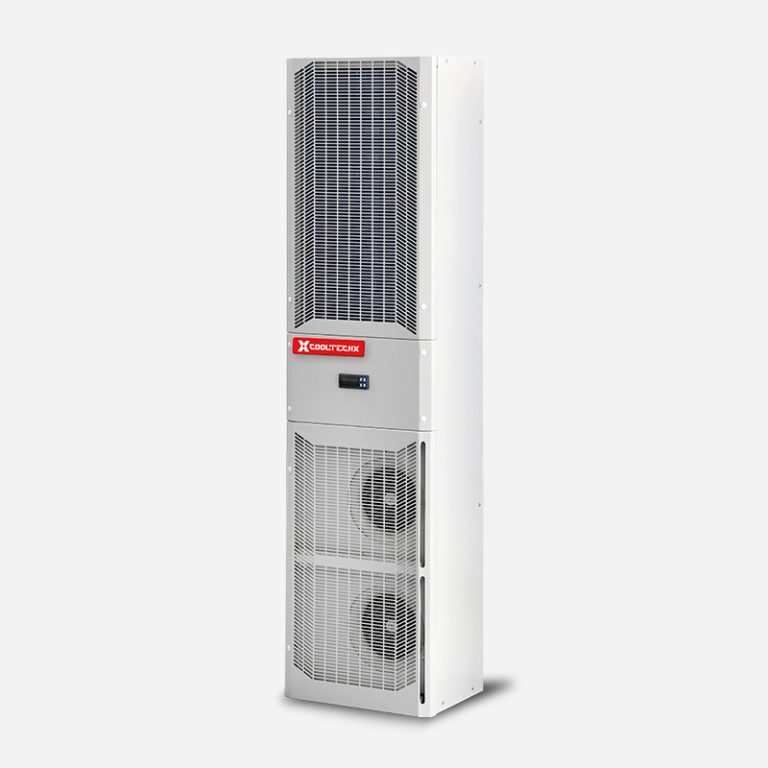

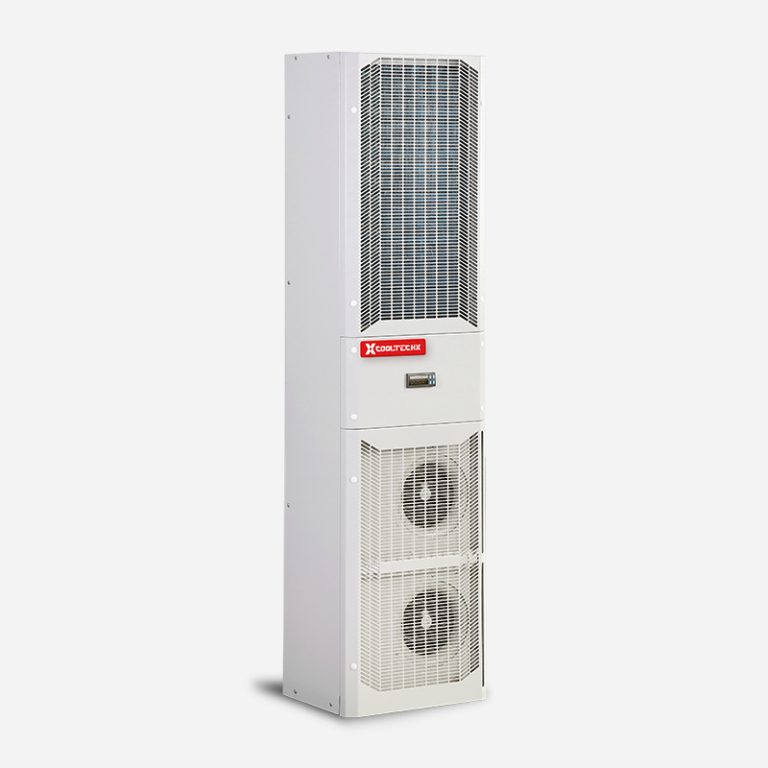

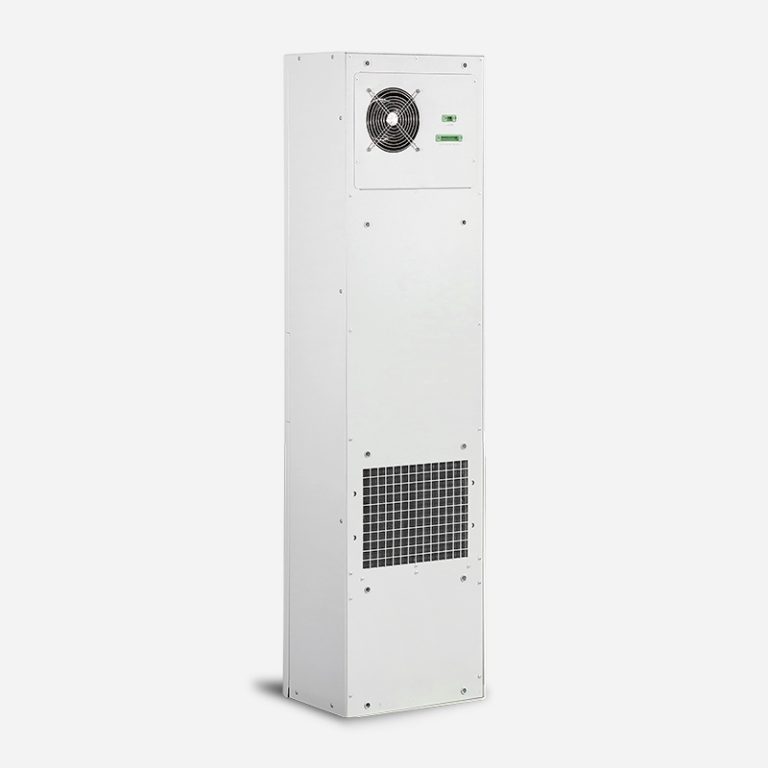

2500W AC Cabinet Air Conditioner for Industrial Machine - Cooltechx CTACG2526N

Machine Tool | CNC Machine Tool | Electrical Control Cabinet | Frequency Conversion Cabinet

Product Highlights:

The G Series Indoor Cabinet Air Conditioner is specifically engineered for industrial electrical cabinets, featuring high-efficiency cooling, plug-and-play functionality, and intelligent control. It operates using a fully enclosed refrigeration cycle and supports multiple modes, including temperature alarm, delayed protection, and manual override. Easy to install and operate, the unit offers parameter adjustment and fault code display via the control panel, simplifying maintenance and monitoring. Ideal for applications in smart manufacturing, automation systems, and energy sectors. The product comes with a 12–18-month warranty and complies with environmental recycling regulations.

Chat Now

GLOBAL PARTNERSHIP

Establish Intimidate Partnerships with International Companies

Why Cooltechx?

Distinguished R&D Staff, Supportive After-sale Service, and Specialized Customization

Reliable Quality：Backed by 20+ years of engineering experience, using top-tier components like Mitsubishi and Schneider, with 100% high-temperature lab testing to ensure stability and durability.

Flexible Customization：Provides fast OEM/ODM services, delivering tailored solutions within 2 days to meet your unique requirements.

Energy Efficiency & Eco-Friendly：Supports multiple eco-friendly refrigerants including R-410A, R-134a, R-513A, combined with inverter technology and patented energy-saving designs, achieving 5%–20% energy savings.

Certified & Cost-Effective：Holds UL, CE, TüV certifications, and leverages optimized structure and mass production to reduce total cost while ensuring high quality.

Product features

Product Functions

High-Efficiency Cooling
Rapidly removes heat from enclosed cabinets to maintain optimal operating temperature.
Intelligent Temperature Control
Automatically adjusts cooling based on setpoints; supports alarm triggers for high/low temperature thresholds.
Plug-and-Play Operation
Ready to use upon installation with no complex setup required.
Manual Override Mode
Allows forced compressor startup when needed for maintenance or rapid response.
Delay Protection Logic
Prevents frequent compressor start/stop, extending equipment life.
Real-Time Alarm System
Supports up to 8 types of fault and status alarms via signal output.
User-Friendly Controller Interface
Supports parameter adjustment, fault code display, and quick diagnostics.
Remote Monitoring (Optional)
Compatible with Modbus and RS-485 for integration into smart systems.

Cabinet Air Conditioner Display

KEY PARTS

To ensure the quality of our products, we use:

Compressor

Highly/Panasonic/Hitachi

Compact structure. /Low noise and reliable operation.

Eco-Friendly Refrigerants

Compact structure /low noise

Condenser

Powerful heat dissipation, function, easy to clean

Galvanized sheet material

Multilayer, thicker and durable metal cover

Fan

Fanstech/Kaku/EBM

Flat design. High efficiency.

Evaporator

Pure copper evaporator-higher

efficiency and longer service life

Circuit Board

Independent R&D

Customization supported

Factory scene

Self-owned industrial cabinet air conditioner production factory:

● EOM, ODM, and customization supported

● 8 steps quality inspection processes

● 40HP Comprehensive Performance Calorimeter Laboratory

To ensure 100% quality inspection of each industrial enclosure air conditioner

Technical parameter

Model	CTACG2526N
Dimension
Dimension	mm	1580400295
Weight	Kg	66
IP code	IP54
Surface	Painting RAL7035
Cooling Performance
Cooling capacity(L35/L35 )	W	2500
Power consumption	W	1018
Operation temperature	℃	20~55
Airflow	m3/h	500
Noise	dB(A)	65
Refrigerant	R134a
Condensate management	Optional
Heating Performance
Heating capacity	W	—
Electrical Data
Power supply	AC 230V+/-10% 50/60Hz
Rated current	A	4.7
Max. current	A	10.8
Starting current	A

GENERAL ARRANGEMENT

Customized Service Available to Support Any of Your Cabinet (Metric: mm)

Electrical wiring diagram

Power input

❖ Max. wire diameter:2.5mm2

❖ L- Live wire

❖ N- Neutral wire

❖ PE- Gound wire

Signal wire

❖ 1-2 Normally close for alarm output

❖ 2-3 Normally open for alarm output

❖ 4-5 Alarm input

❖ RS485 7-A / 8-B / 6-GND

Applications

Embark on the New Journey With Cooltechx

Distribution Cabinet

Control Cabinet

EV Charge Piles

Why Is Temperature Control Important for Machine Running?

Boost Efficiency and Improve Productivity

The service life of electronic components is directly related to the ambient temperature. Generally, electronic components will have a shorter service life for every 10 degrees higher than the normal indoor temperature.

For High temperature environment:

As a result, the operation efficiency of the equipment will decrease and abnormal operation will occur, and the characteristics of the rubber material will also change.

For low temperature environment:

Below the dew point temperature will cause condensation on the surface of the equipment, increasing the risk of equipment corrosion and abnormal operation of the equipment.

Enhance the service life of electronic components and contribute to the efficiency of the enterprise！

Cooltec Advantage

Unveil the New Stage of Higher Efficiency

Professional Staff

Cooltechx is a brand integrating R&D, manufacturing, sales, and service. Our staff comes from Fortune 500 companies with more than 20 years of experience in the air-conditioning industry.

OEM & ODM

Our R&D technical teams can support customization, which means that if you have different requirements, higher standards, or more functional needs, we will give you the most cost-effective cooling solution.

Sample Avaiable

Cooltechx cabinet air conditioner sample is available, ordering any amount of product is welcomed. The sample is of good quality at a reasonable price.

Technical & Service Team Support

Reliable R&D and After-sales Team Team

Professional Technical Team

Our technical team will guide and support you from purchase to maintenance. For oversea customers offer video conference for product introduction and guidance according your time.

Guidance Maintenance Team

There will be a professional after-sales team to follow up, and regularly provide professional advice on cleaning, maintenance. If you have any problems with the products or after sales, you can contact our after sales team at the first time, and they will give professional advice at the first time.

After-sales Team

First-class after-sales service, to provide end customers with full technical protection, empowering dealers to provide technical training, website construction, market development ,and promotional support.
If there are defective or incorrectly shipped goods, please contact us within 5 days of receiving the goods.

Certificate Authentication

Professional Certification Endorsement Provided

FAQ

How to Install the Indoor Air Conditioner?

The enclosure air conditioner is easy to install.

1. Get your enclosure prepared according to the dimension drawing. do not damage the gasket

2. Do not drag the air conditioner cooler.

3. Connect the power cord to a well-grounded power supplier. See more from the User Guide.

What You Should Do Before the Installation?

1. The enclosure air conditioner must be kept upright, and the inclination angle no more than 3 degrees.

2. The clearance between the condenser air inlet and outlet and the surrounding obstruction should be no less than 50 cm.

3. Please check the drainage.

How to Start the Enclosure Air Conditioner?

After all the preparation and check, just connect terminal I and terminal II to the power source respectively.

How to Solve the Signal Transmission Problem?

Tell our customer service the signal transmission standard of your country, and we can customize it for you.
