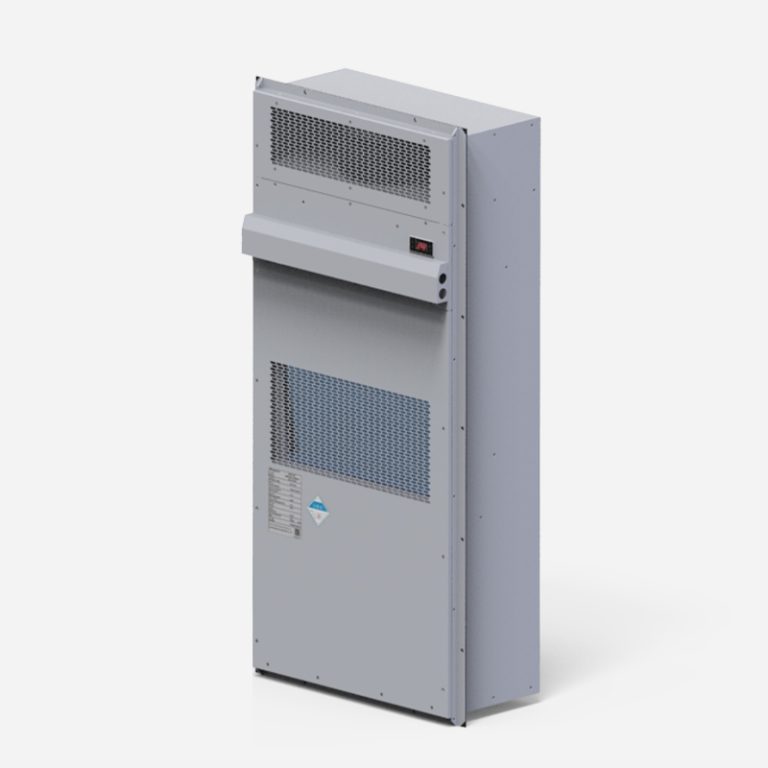

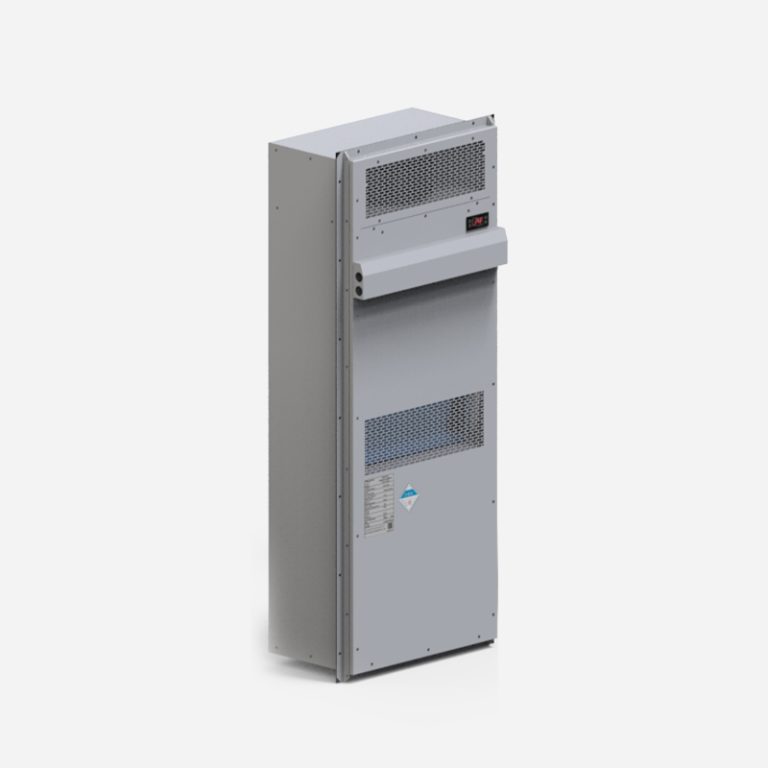

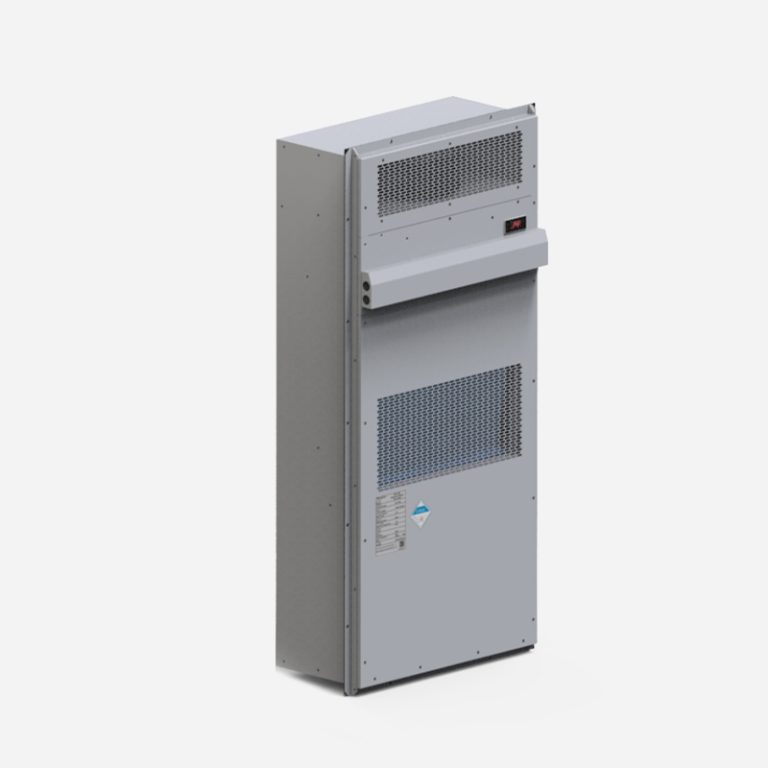

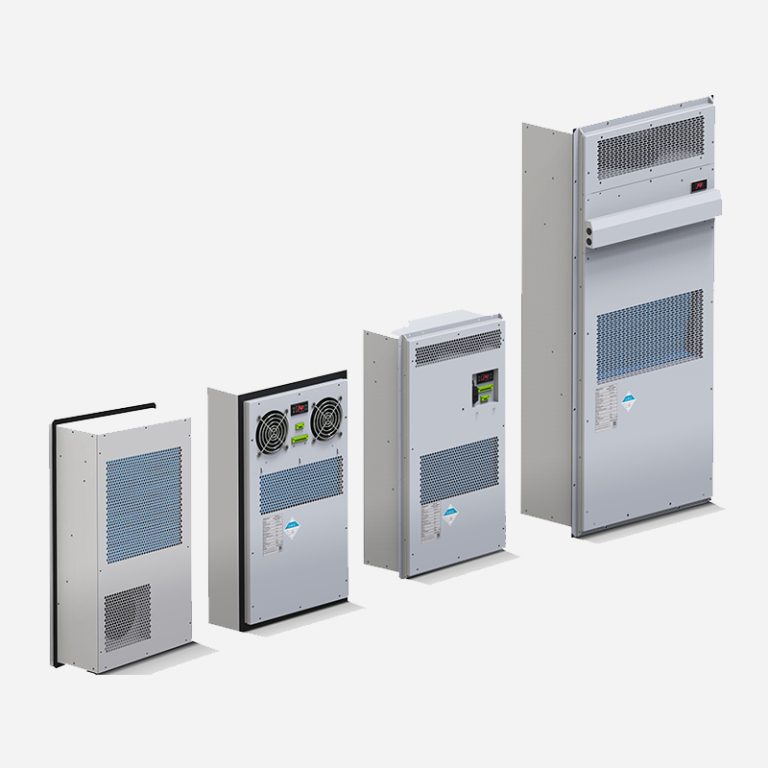

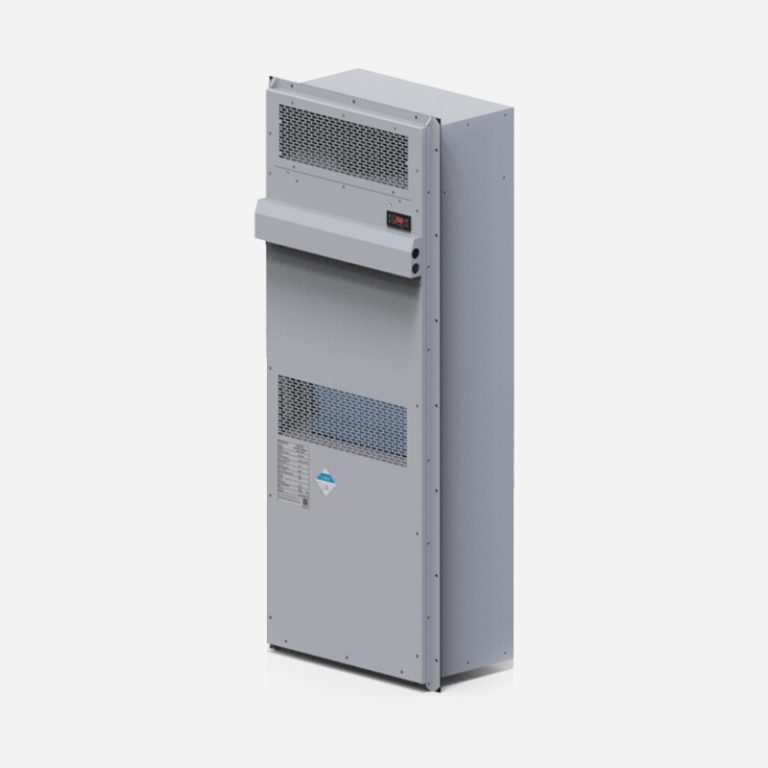

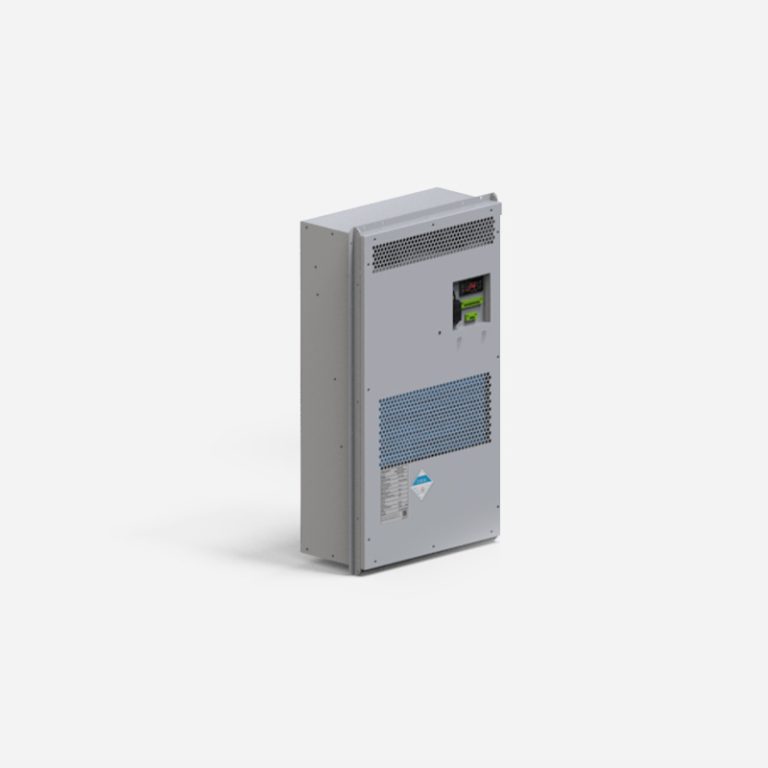

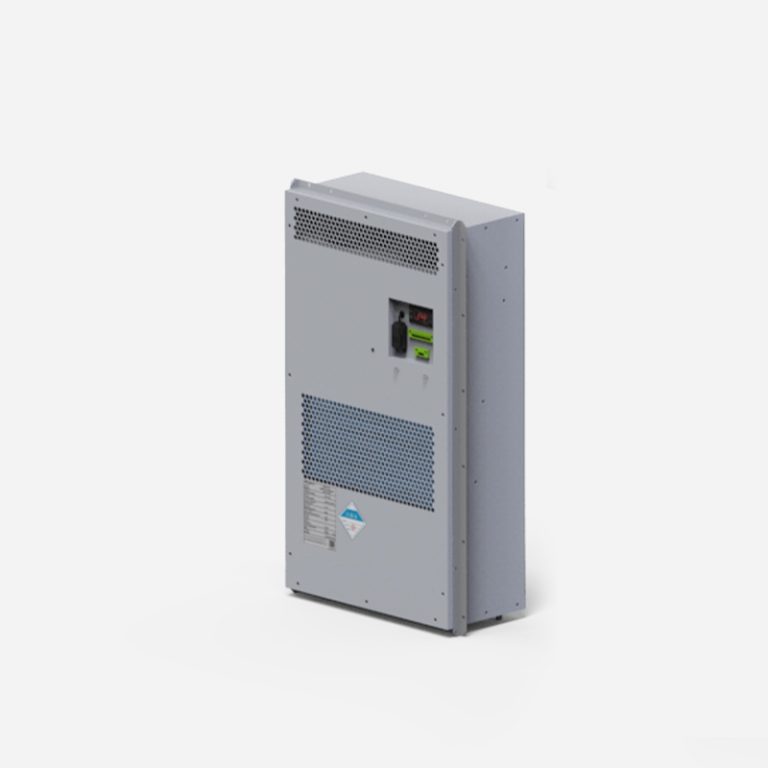

The Cooltechx CTC AD series provides 0.6–7.5kW of air cooling for commercial and industrial (C&I) battery storage cabinets. Eight semi-embedded cabinet air conditioner models let integrators compare cooling capacity, electrical input and mounting dimensions for an enclosed battery cabinet.
All eight models are specified with IP55 protection. Select against the cabinet heat load and site conditions, not battery storage capacity alone: nominal cooling is stated at L35/L35, and available capacity changes with temperature. Refrigerant, power supply and operating temperature limits vary by model.
Supply configuration options include 220V and optional 380V versions for the documented cooling sizes. Select one supply version for the project; these are separate configurations, not a switchable-voltage unit.
Cooling capacity and cooling input below are rated at L35/L35. All models use semi-embedded mounting and are specified as IP55.
| Model | Cooling (kW) | Cooling input (W) | Power supply options | Dimensions H × W × D (mm) | Weight (kg) | Refrigerant options |
|---|---|---|---|---|---|---|
| CTC006AD | 0.6 | 260 | 220V AC ±15%, 50/60Hz Option: 380V AC ±15%, 50/60Hz |
583 × 352 × 175 | 15 | R513A / R134a / R410A |
| CTC010AD | 1.0 | 440 | 220V AC ±15%, 50/60Hz Option: 380V AC ±15%, 50/60Hz |
795 × 495 × 195 | 30 | R513A / R134a / R410A |
| CTC015AD | 1.5 | 650 | 220V AC ±10%, 50/60Hz* Option: 380V AC ±10%, 50/60Hz* |
795 × 495 × 175 | 40 | R513A / R134a / R410A |
| CTC020AD | 2.0 | 870 | 220V AC ±10%, 50/60Hz* Option: 380V AC ±10%, 50/60Hz* |
795 × 495 × 195 | 40 | R513A / R134a / R410A |
| CTC030AD | 3.0 | 1430 | 220V AC ±10%, 50/60Hz Option: 380V AC ±10%, 50/60Hz |
1350 × 500 × 250 | 66 | R513A / R134a / R410A |
| CTC040AD | 4.0 | 2000 | 220V AC ±15%, 50/60Hz Option: 380V AC ±15%, 50/60Hz |
1400 × 670 × 300 | 82 | R513A / R134a / R410A |
| CTC050AD | 5.0 | 2000 | 220V AC ±10%, 50/60Hz* Option: 380V AC ±10%, 50/60Hz* |
1400 × 670 × 300 | 82 | R513A / R134a / R410A |
| CTC075AD | 7.5 | 2700 | 220V AC ±15%, 50Hz Option: 380V AC ±15%, 50Hz |
1300 × 600 × 320 | 75 | R513A / R134a / R410A |
Refrigerant options: R513A / R134a / R410A / R454B. Specify the required refrigerant when requesting a quote. Refrigerant is selected as a factory configuration, not a drop-in substitution; confirm the selected configuration’s performance and electrical data before ordering.
For selection, send the cabinet heat load, target internal temperature, highest and lowest ambient temperatures, available power supply and mounting space. See our BESS air cooling systems for other cabinet and container cooling options.
Self-owned industrial air-conditioning production factory:
● Customized Integrated Solutions
● 8-Step Quality Inspection Process
● Manual Quality Inspection
● 40HP Comprehensive Performance Calorimeter Laboratory
To ensure 100% quality inspection of each industrial enclosure air conditioner
Cooltechx is a brand integrating R&D, manufacturing, sales, and service. Our staff comes from Fortune 500 companies with more than 20 years of experience in the air-conditioning industry.
Our R&D technical teams can support customization, which means that if you have different requirements, higher standards, or more functional needs, we will give you the most cost-effective cooling solution.
Cooltechx cabinet air conditioner sample is available, ordering any amount of product is welcomed. The sample is of good quality at a reasonable price.
Advanced temperature control technology ensures even temperature distribution, which is critical for performance and longevity.
Emphasizes energy efficiency and energy-saving potential, using phase-change storage materials and virtual energy storage technology to increase efficiency and reduce energy consumption.
The technology is mature, and the product is reliable and stable. Liquid cooling and air cooling technologies have varying levels of maturity and application ranges in the market.
Initial investment cost and maintenance costs are key considerations for customers. Although liquid cooling systems have higher initial costs, they may offer lower overall costs in the long term.
Noise control and space requirements are key design considerations. Air cooling systems are quieter but may occupy more space, while liquid cooling systems are more compact.
Equipped with an intelligent control system capable of real-time monitoring and temperature adjustments, automatically optimizing operating modes to improve energy efficiency.
Effectively addresses overheating issues with adequate safety measures in place to ensure safe system operation.
