4 Types of Heat Transfer Mechanisms for Cooling Electrical Enclosures

Keeping electrical enclosures cool isn’t just desirable; it’s mission-critical. Excessive heat accelerates component degradation, causes premature failures, increases downtime, and compromises safety. Effective thermal management hinges on understanding and leveraging the fundamental physics of heat transfer. This article explores the four primary heat transfer mechanisms used in cooling electrical enclosures: conduction, convection, radiation, and phase change cooling. Mastering these principles is essential for electrical engineers, cabinet design specialists, and industrial cooling solution providers tasked with ensuring reliable operation.

Why Heat Transfer Matters in Electrical Enclosures

Every component inside an electrical enclosure – from PLCs and VFDs to power supplies and contactors – generates heat during operation. Without effective dissipation, this heat accumulates, raising the internal ambient temperature. High temperatures can lead to:

Reduced lifespan of components (e.g., electrolytic capacitors).
Increased electrical resistance, leading to higher losses and more heat.
Thermal runaway in semiconductors.
Malfunction or tripping of protective devices.
Condensation issues due to temperature cycling.

The goal of thermal management is to move this waste heat from the source components, through the enclosure, and ultimately to the surrounding environment. This relies entirely on the principles of heat transfer.

The Four Pillars of Enclosure Heat Transfer

Heat moves in four distinct ways, each playing a role in cabinet cooling strategies:

1. Conduction: Direct Transfer Through Contact

What it is: Heat transfer through direct physical contact between materials. Heat flows from the hotter object to the cooler one.
How it works in enclosures: Heat generated by a component (like a power resistor) conducts through its mounting points into the DIN rail or chassis. This heat then conducts into the enclosure wall itself. Strategically mounting hot components to heatsinks or thermally conductive mounting plates significantly enhances this path. The enclosure wall then transfers heat to the outside air or mounting surface via conduction.
Pros:
- Passive, reliable (no moving parts).
- Effective for localized hot spots when paired with heatsinks.
- Simple to implement with proper material selection (e.g., aluminum enclosures conduct better than stainless steel).
Cons:
- Limited capacity, especially for high heat loads or large enclosures.
- Relies heavily on the temperature difference (ΔT) between the interior and exterior.
- Requires good thermal contact surfaces (often needing thermal interface materials like pastes or pads).

2. Convection: Heat Removal by Fluid Movement

What it is: Heat transfer via the movement of a fluid (liquid or gas – primarily air in enclosures). Heat is carried away from hot surfaces by the moving fluid.
Natural vs. Forced:
- Natural Convection: Relies on buoyancy. The hot air inside the enclosure rises, drawing cooler air in from vents near the bottom. Heat dissipates from the outer cabinet surfaces similarly. Requires strategically placed vents.
- Forced Convection: Uses fans, blowers, or air conditioners to actively move air across hot components and through the enclosure. This dramatically increases heat removal rates.
Application in electrical cabinets: This is the most common active cooling method.
- Ventilation: Uses filtered vents for natural convection or simple fan kits for forced air exchange with the surrounding environment. Suited for relatively clean, moderate-temperature areas.
- Fan & Filter Units (FFUs): Pull in filtered ambient air and expel heated air.
- Air-to-Air Heat Exchangers: Transfer heat from inside air to outside air through a heat-conductive barrier without mixing the air streams, protecting sensitive components from dust/humidity.
Pros:
- Forced convection offers high cooling capacity.
- Relatively cost-effective (especially ventilation/fans).
- Air-to-air exchangers provide protection while cooling.
Cons:
- Requires openings (potential for contamination ingress unless sealed units like heat exchangers are used).
- Fans add moving parts, noise, and potential failure points.
- Effectiveness depends heavily on ambient air temperature and cleanliness.
- Natural convection has limited cooling power.

3. Radiation: Infrared Energy Transfer

What it is: Heat transfer via electromagnetic waves (infrared radiation). All objects above absolute zero emit radiant energy; hotter objects emit more.
When radiation matters: Radiation becomes a more significant factor when temperature differences are high and in environments with minimal convection/conduction paths (e.g., vacuum, outer space, or even within a large, still enclosure). It’s often a secondary contributor in standard enclosure cooling but shouldn’t be ignored, especially for high-temperature components or surfaces facing large, cooler areas.
Surface treatment and emissivity: The ability of a surface to emit radiation is its emissivity (ε). Shiny, polished metals have low ε (~0.05-0.1), meaning they are poor radiators (and poor absorbers). Dark, matte, or specially coated surfaces have high ε (~0.8-0.95), making them efficient radiators.
Application: Painting enclosure exteriors a dark color (especially matte black) increases emissivity, enhancing heat dissipation to the surroundings via radiation. Internally, ensuring components aren’t shining heat directly onto sensitive neighbors can be important. Radiation is crucial in high-temperature applications or sealed units with significant internal heat sources.

4. Phase Change Cooling: Leverating Latent Heat

What it is: Heat transfer utilizing the large amount of energy absorbed or released during a material’s phase change (e.g., liquid to gas or gas to liquid). This “latent heat” provides very efficient cooling.
Use of refrigerants or thermoelectric elements: Two primary methods:

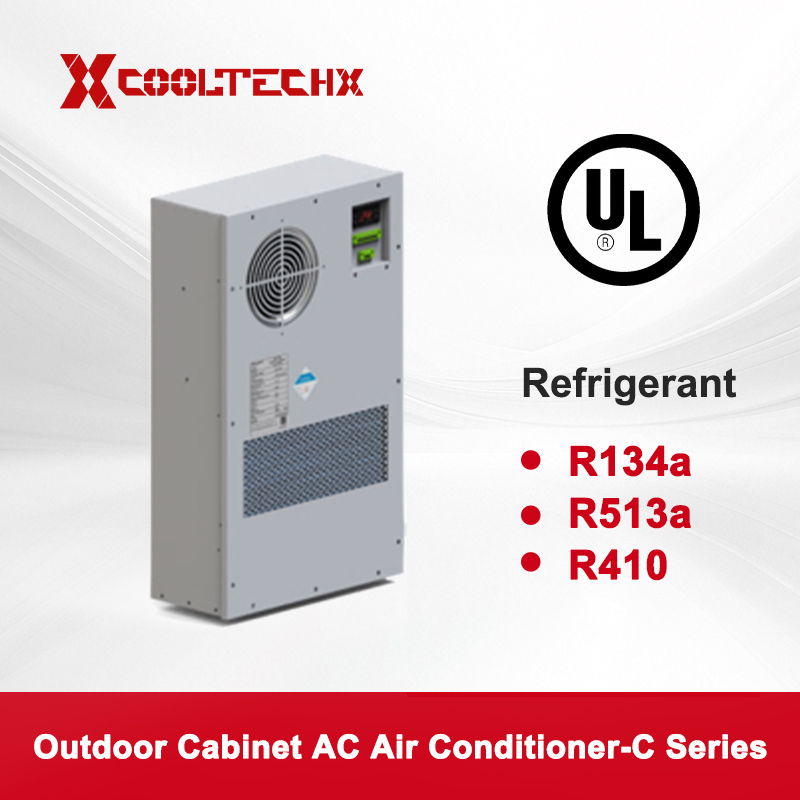

- Refrigeration Systems (Air Conditioners / Chillers): Use a refrigerant cycle. A compressor circulates refrigerant that evaporates (absorbing heat from inside the enclosure) and then condenses (releasing that heat outside). Provides powerful cooling independent of ambient temperature.
- Thermoelectric Coolers (TECs / Peltier Coolers): Use electrical current to create a temperature difference across a semiconductor junction. One side gets cold (absorbing enclosure heat), the other side gets hot (requiring external heat dissipation, often with a fan/heatsink). Best for spot cooling or lower heat loads.
Efficiency and design considerations:
- Refrigeration: Highly effective for high heat loads and high ambient temperatures. Requires significant power for the compressor and condenser fan. Needs condensate management. More complex and costly.
- Thermoelectric: Solid-state (no moving parts except external fan), compact, precise temperature control. Lower efficiency (COP), limited cooling capacity, requires significant electrical power for the heat pumped. Best for small sealed enclosures or sensitive electronics.
Application: Essential for cooling electrical enclosures in harsh environments (very high ambients, dust-laden, corrosive), sealed NEMA 4/4X/12 cabinets, or enclosures with exceptionally high heat loads (e.g., large drives, servers).

Choosing the Right Cooling Method for Your Electrical Enclosure

Selecting the optimal thermal management strategy isn’t one-size-fits-all. Key factors include:

Heat Load (Watts): Total heat generated by internal components.
Ambient Temperature: The temperature outside the enclosure.
Enclosure Size & Material: Affects surface area for convection/radiation and conduction paths.
Environmental Conditions: Presence of dust, moisture, corrosive gases, and explosive atmospheres (requiring specific ratings like NEMA or IP).
Sealing Requirements: Does the application demand a sealed cabinet (NEMA 4, IP66)?
Available Power: How much power can be dedicated to cooling (fans, TECs, compressors)?
Acoustic Constraints: Is noise from fans or compressors a concern?
Budget: Initial cost and ongoing maintenance/energy costs.

Combining Methods: Often, the most effective solution uses multiple mechanisms. Examples:

Heat sinks (conduction) with fans (forced convection).
A sealed enclosure (blocking convection) cooled by an air conditioner (phase change) with a dark exterior (radiation).
Natural convection vents combined with strategically placed internal heatsinks.

Application Scenarios: Matching Mechanism to Need

Indoor Control Panels (Clean, Moderate Ambient): Natural convection (vents), forced convection (fans/FFUs), or air-to-air heat exchangers offer cost-effective solutions. Conduction via heatsinks manages component hotspots.
Outdoor Cabinets (Dusty, Humid, Variable Ambient): Sealed enclosures (NEMA 4/4X) are common. Air conditioners (phase change) are often necessary for high heat loads/high ambients. Air-to-air exchangers work well for moderate loads. Radiation is enhanced with dark finishes.
Battery Energy Storage Systems (BESS): Require precise temperature control for safety and longevity. Often liquid cooling (advanced convection/phase change hybrids) or refrigerant-based cooling (phase change) due to very high heat densities and critical temperature limits.
Sealed Cabinets for Hazardous Areas: Phase change cooling (air conditioners or TECs) is typically the only viable option for significant heat loads, as ventilation is prohibited.

Conclusion: Mastering the Mechanisms for Optimal Cooling

Effective cooling of electrical enclosures is a cornerstone of system reliability and longevity. By understanding the core heat transfer mechanisms – conduction, convection, radiation, and phase change cooling – engineers and designers can make informed decisions. There’s no single “best” method; the optimal solution depends on a careful analysis of the specific heat load, environmental conditions, enclosure constraints, and performance requirements. Often, combining these fundamental mechanisms yields the most robust and efficient thermal management strategy for electrical cabinets.

Ready to optimize your enclosure cooling design? Contact our thermal management specialists today for a customized solution tailored to your specific heat load and environmental challenges.

FAQ: Cooling Electrical Enclosures

Q: What is the most efficient cooling method for outdoor enclosures?
- A: Efficiency depends on the specific conditions. For moderate loads and ambients, air-to-air heat exchangers offer excellent energy efficiency by transferring heat without mixing air or using compressors. For high heat loads or very high ambients, refrigerant-based air conditioners are the most powerful and effective solution, though they consume more energy. Proper sizing is crucial for efficiency in any method.
Q: Can I combine conduction and convection cooling?
- A: Absolutely! This is a highly effective and common strategy. Using heatsinks (conduction) mounted directly on hot components significantly increases their surface area. Adding fans (forced convection) to blow air over these heatsinks dramatically enhances the heat removal rate compared to either method alone. This combination efficiently manages localized hot spots within the enclosure.
Q: What cooling solution is best for sealed cabinets (NEMA 4/4X)?
- A: Sealed cabinets eliminate ventilation options. The primary choices are:
  - Air Conditioners: Best for moderate to high heat loads, providing powerful cooling independent of ambient temperature.
  - Air-to-Air Heat Exchangers: Ideal for moderate heat loads in environments where ambient temperature is lower than the desired internal temperature. Very energy efficient.
  - Thermoelectric Coolers (TECs): Suitable for lower heat loads in compact sealed enclosures where precise temperature control or solid-state reliability is critical.
  - Liquid Cooling (Advanced): Used for extremely high heat densities (e.g., some power converters), and circulating coolant to an external radiator. The choice depends heavily on the heat load, ambient conditions, and cabinet size.
