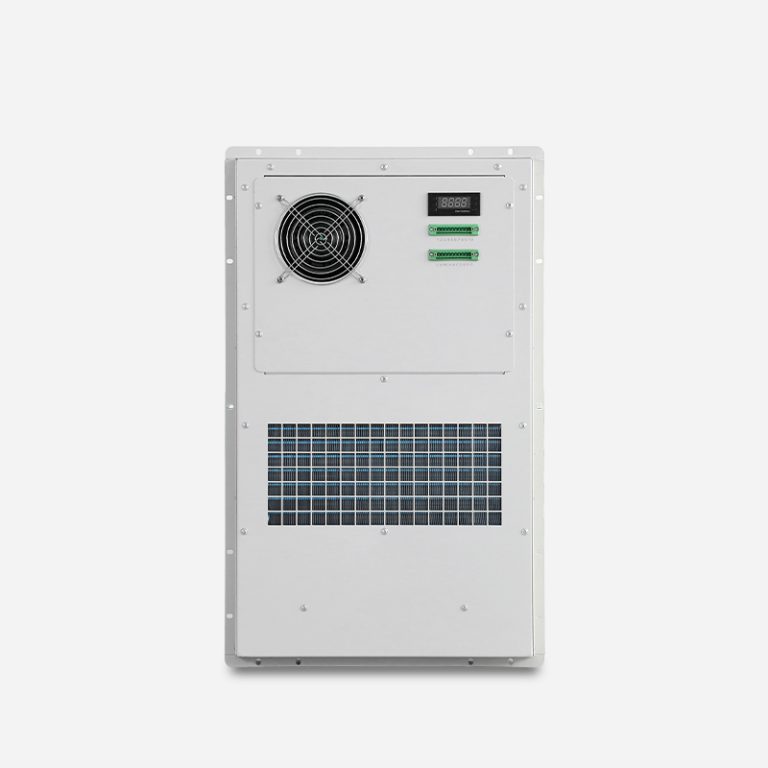

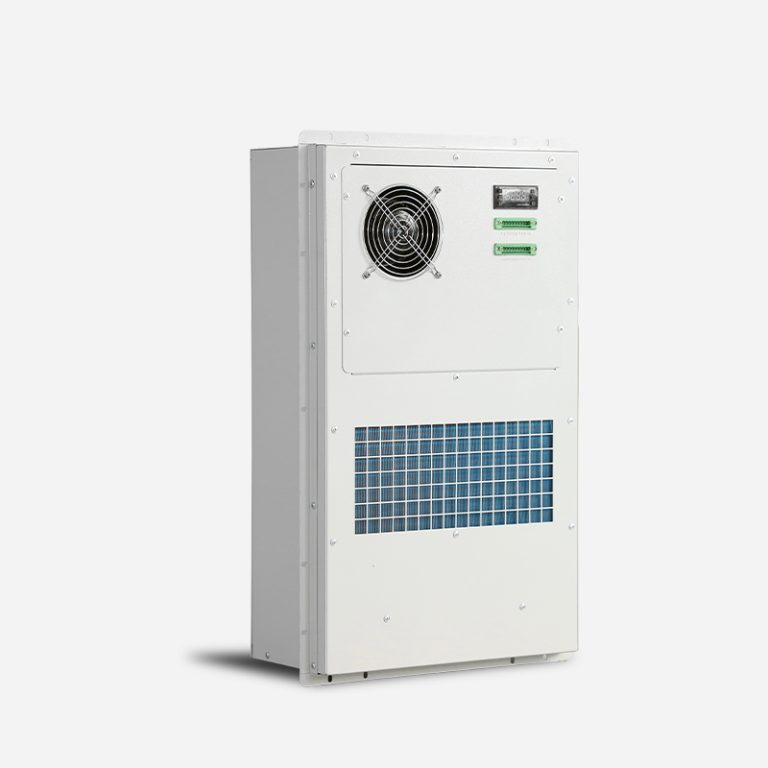

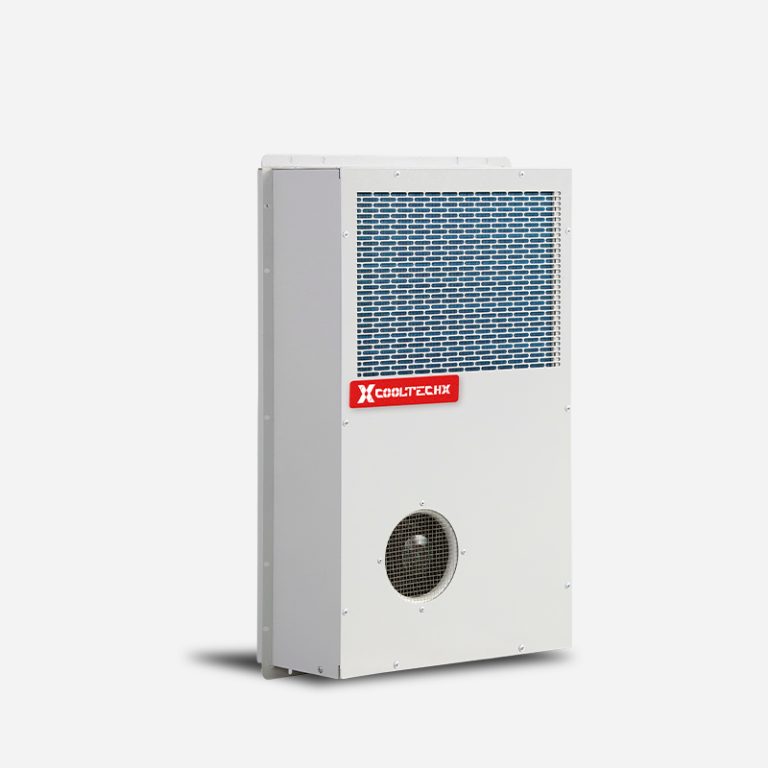

300W Communication Air Conditioner Outside Unit High Energy Efficiency No Leakage - Cooltechx CTACT0325W

Communication Air Conditioner For Outdoor Telecom Battery Integrated Enclosure | 5G base station

Product Highlights:

- ✅ 300W Cooling Power: Designed for efficient heat dissipation in telecom and communication cabinets.
- ✅ All-Metal Housing: Compact, slim structure with high durability, suitable for space-limited applications.
- ✅ IP56 Protection: Waterproof and dustproof design for reliable outdoor operation in all weather conditions.
- ✅ Smart Monitoring: Built-in RS485 interface with MODBUS protocol for remote control and fault diagnostics.
- ✅ Plug-and-Play: No complex debugging needed. Instantly operational once powered on.
- ✅ Long-Lasting Reliability: 365 days/year of stable performance, with a service life over 10 years.

Chat Now

GLOBAL PARTNERSHIP

Establish Intimidate Partnerships with International Companies

Why Cooltechx?

Distinguished R&D Staff, Supportive After-sale Service, and Specialized Customization

Reliable Quality：Backed by 20+ years of engineering experience, using top-tier components like Mitsubishi and Schneider, with 100% high-temperature lab testing to ensure stability and durability.

Flexible Customization：Provides fast OEM/ODM services, delivering tailored solutions within 2 days to meet your unique requirements.

Energy Efficiency & Eco-Friendly：Supports multiple eco-friendly refrigerants including R-410A, R-134a, R-513A, combined with inverter technology and patented energy-saving designs, achieving 5%–20% energy savings.

Certified & Cost-Effective：Holds UL, CE, TüV certifications, and leverages optimized structure and mass production to reduce total cost while ensuring high quality.

Product features

Communication Air Conditioner

Cooling Capacity: 300W (Tested under L35/L35 conditions)
Operating Temperature Range: -40°C to +55°C
Slim, Partial-Recess Structure: Space-saving design for compact cabinet integration
All-Metal Enclosure: Durable and corrosion-resistant housing for harsh environments
Coated Heat Exchanger: Anti-corrosion and dust-resistant with large fin spacing
Smart Controller: Easy parameter setting and alarm information display
RS-485 with MODBUS: Remote monitoring and control integration
Alarm Interface: High/low temperature alarms and normally open/closed inputs
Eco-Friendly Refrigerant: Uses R134a and complies with RoHS standards
Condensate Evaporation (Optional): For improved moisture management

Cabinet Air Conditioner Display

KEY PARTS

To ensure the quality of our products, we use:

Compressor

Highly/Panasonic/Hitachi

Compact structure. /Low noise and reliable operation.

Eco-Friendly Refrigerants

Compact structure /low noise

Condenser

Powerful heat dissipation, function, easy to clean

Galvanized Sheet Matel

Multilayer, thicker and durable metal cover

Fan

Fanstech/Kaku/EBM

Flat design. High efficiency

Evaporator

Pure copper evaporator-higher

efficiency and longer service life

Circuit Board

Independent R&D
Customization supported

Factory scene

Self-owned industrial air-conditioning production factory:

● Air conditioning OEM industrial air conditioning solution customization

● 8 steps quality inspection processes

● 40HP Comprehensive Performance Calorimeter Laboratory

To ensure 100% quality inspection of each industrial enclosure air conditioner

Technical parameter

Model	CTACT0325W
Dimension
Dimension (with flange)	mm	583352170
Dimension (w/o flange)	mm	546315170
Weight	Kg	15
IP code	IP56
Surface	Painting RAL7035
Cooling Performance
Cooling capacity (L35/L35)	W	300
Power consumption	W	140
Operation temperature	℃	-40~55
Airflow	m3/h	120
Noise	dB(A)	60
Refrigerant	R134a
Condensate management	Optional
Heating Performance
Heating capacity	W	500
Electrical Data
Power supply	AC 230V+/-10% 50Hz
Rated current	A	0.63
Max.current	A	1.4
Starting current	A	5

GENERAL ARRANGEMENT

Customized Service Available to Support Any of Your Cabinet (Metric: mm)

Electrical wiring diagram

Power wiring

The maximum allowable wire diameter is 2.5mm²
L- Power cord
N- Power zero line
PE- Power Earth

Signal wiring

1-2 4~20mA temperature output
3-4 4~20mA humidity output
RS485 5-GND/6-A / 7-B
8-9 Alarm output – fault closed
8-10 Alarm output – fault on

Applications

Embark on the New Journey With Cooltechx

Telecom Cabinets

5G Base Station

Why Is Temperature Control Important for Machine Running?

Boost Efficiency and Improve Productivity

The service life of electronic components is directly related to the ambient temperature. Generally, electronic components will have a shorter service life for every 10 degrees higher than the normal indoor temperature.

For High temperature environment:

As a result, the operation efficiency of the equipment will decrease and abnormal operation will occur, and the characteristics of the rubber material will also change.

For low temperature environment:

Below the dew point temperature will cause condensation on the surface of the equipment, increasing the risk of equipment corrosion and abnormal operation of the equipment.

Enhance the service life of electronic components and contribute to the efficiency of the enterprise！
